MC4 Solar PV Connnector 4-1 T Branch
FIVESTAR MC4 Solar PV Connnector 4-1 T Branch
R 258,75
Tax amount R 33,75
Description

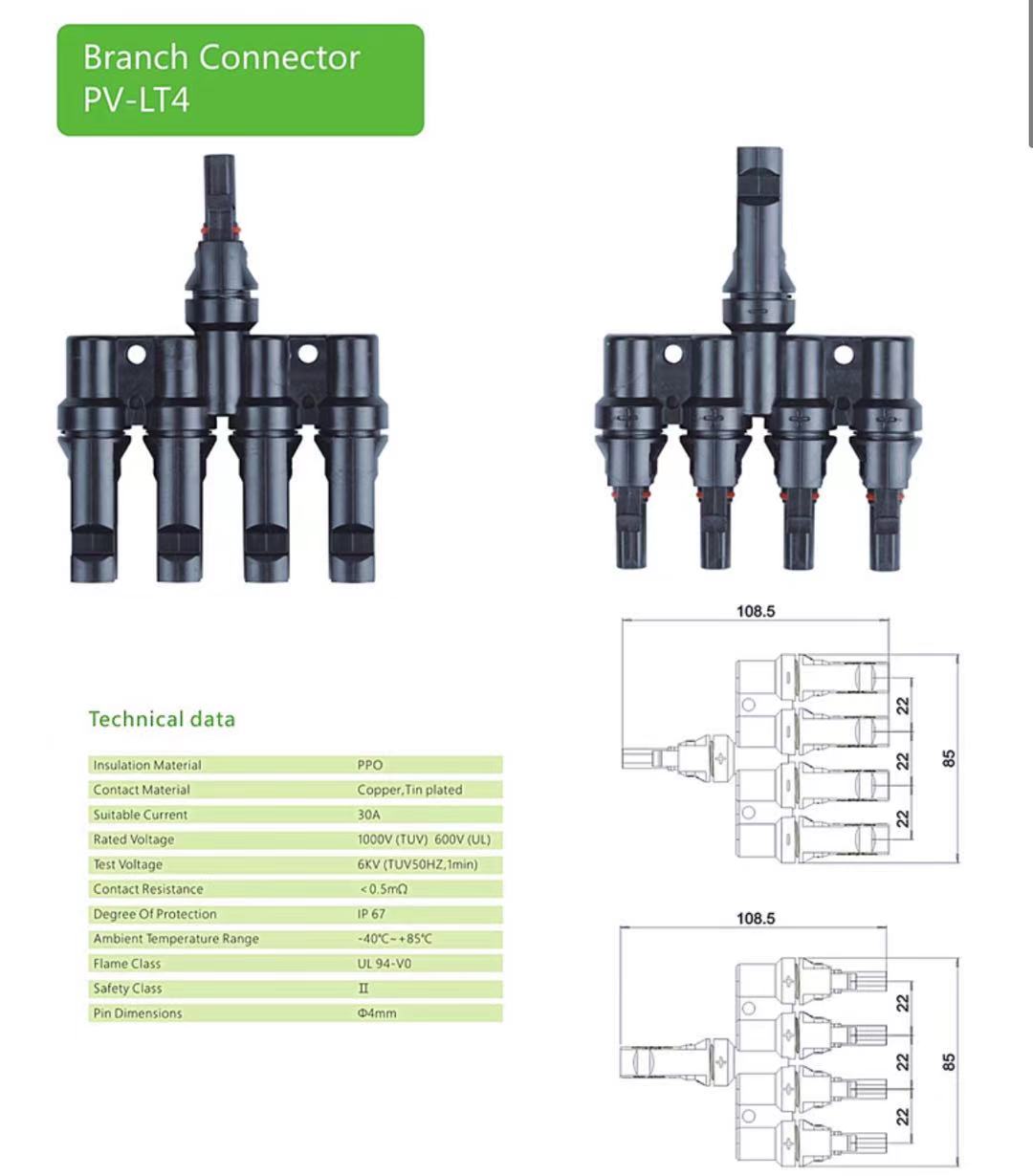

Specification:
Product No:FS-MC4 4-1 T
Rated Voltage TUV 1000V DC / UL 600V DC
Rating Current 20A-30A
Suitable cable cross sections 2.5mm2-6.0mm2 / 14AWG-10AWG
Pin dimension:4.0mm
Proof voltage:DC 8KV(1Min)
Pollution degree: 2
Protection class: Class II
Contact Material: Copper, tin-plated
Contact Resistance: 5mW
Connector Material: PPO

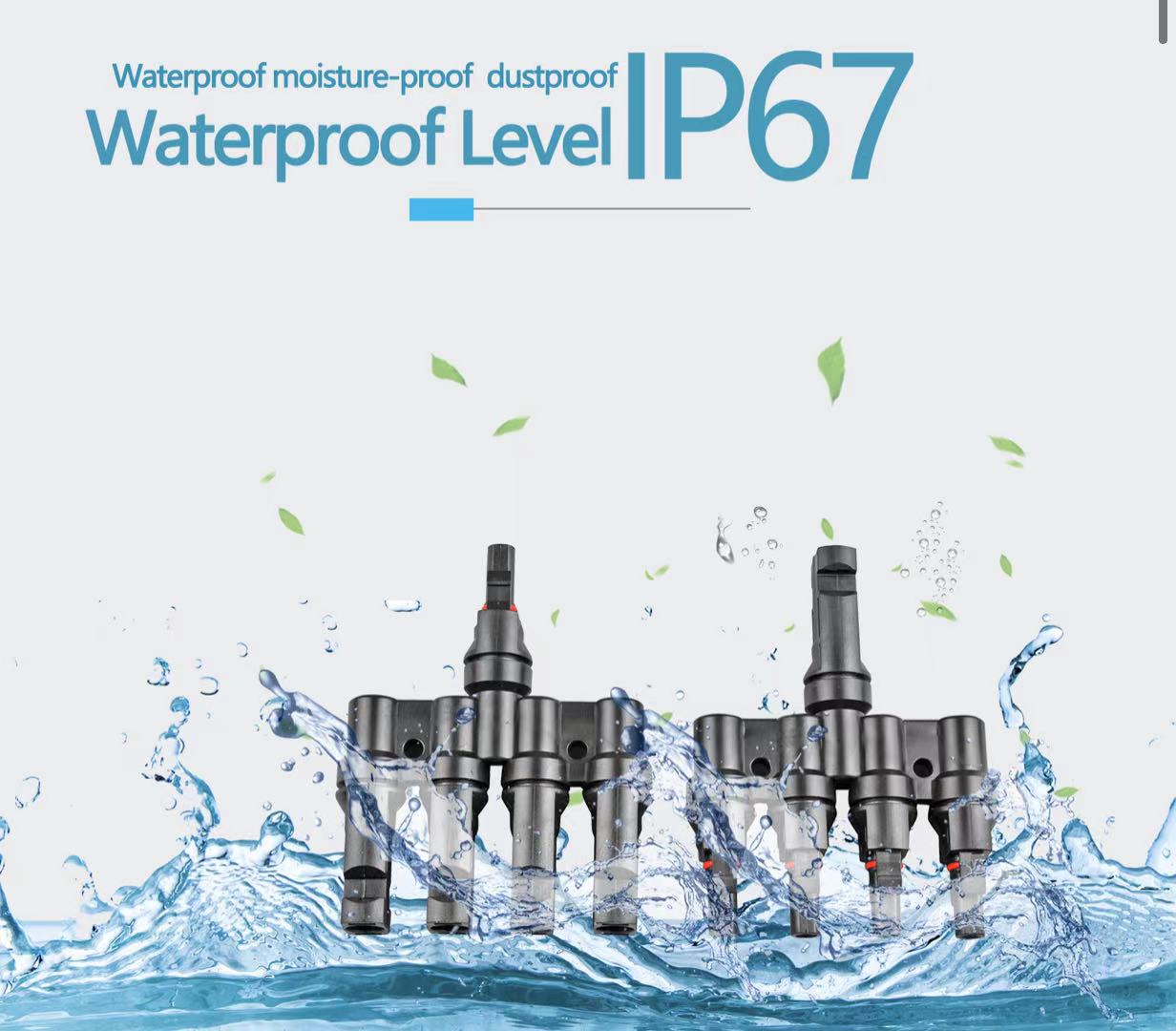

Degree of Protection: IP IP67(IEC 60529)
Withdrawal Force: 50N
Insertion Force: 50N
Temperature :-40-+85C
Flame Class: UL94V - 0
