Description

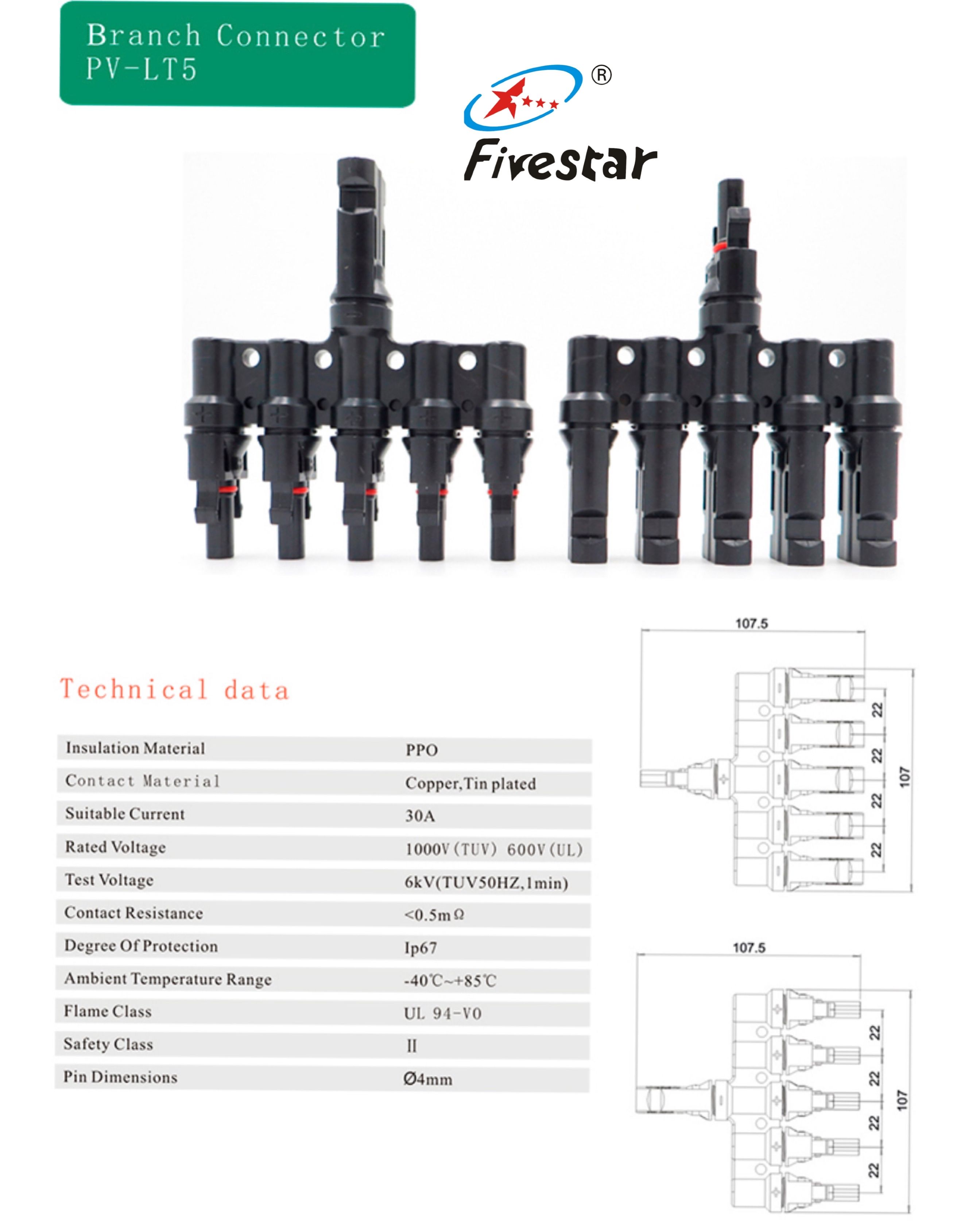

Technical parameters:
Rated Voltage TUV 1000V DC / UL 600V DC
Rating Current 20A~ 30A
Suitable cable cross sections 2.5mm2~ 6.0mm2 / 14AWG~10AWG
Pin dimension 4.0mm
Proof voltage DC 8KV(1Min)
Pollution degree 2
Protection class Class II
Contact Material Copper, tin-plated
Contact Resistance 5mW
Connector Material PPO
Degree of Protection IP IP67(IEC 60529)
Withdrawal Force 3 50N
Insertion Force 50N
Temperature Range -40oc~ +85oc
Flame Class UL94V - 0
